FH Series

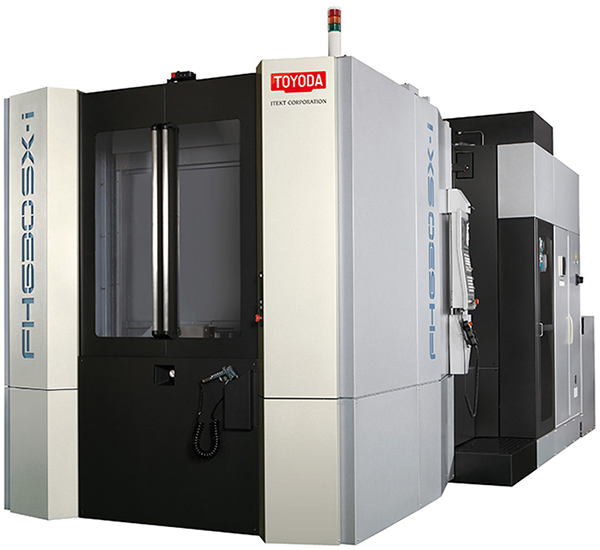

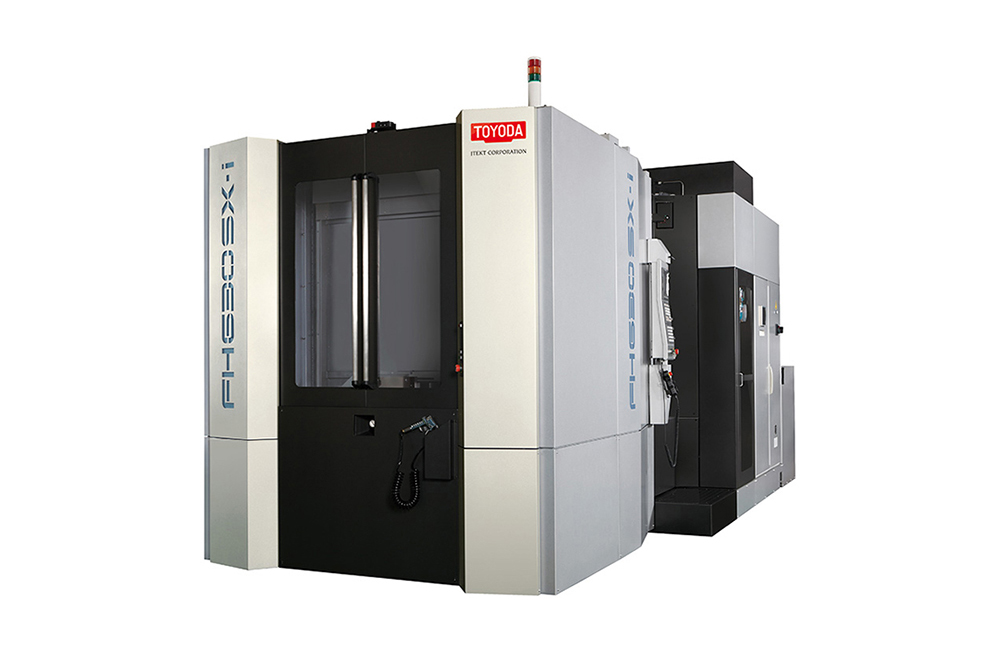

Toyoda FH630SX-i
Toyoda FH630SX-i is equipped with dual drives.
This Toyoda horizontal machining centre sets standards in its class.
Low thermo displacement, largest machining area in its class, fastest rapid feed rate and tool change time in its class.
A Toyoda machine tool with best spindle accessibility and strongest cutting capability in its class.
Attribute | Value |
|---|---|
Pallet size | 630 x 630 mm |
Traverse paths X/Y/Z | 1.050 x 900 x 1.050 mm |
Workpiece Ø x height | Ø 1.170 x 1.250 mm |
Workpiece weight | 1.200 kg (1.500 kg) |
Spindle speed | 50 ~ 6.000 min-1, 50 ~ 15.000 min-1 |
Indexing | 1° (NC-Tisch: 0,001°) |
Distance between spindle nose and table center | 50 mm – 1.100 mm |
Rapid feed rate | 60 m/min |
Pallet change time | 18 s |
Feed rate | 1 ~ 30.000 mm/min |
